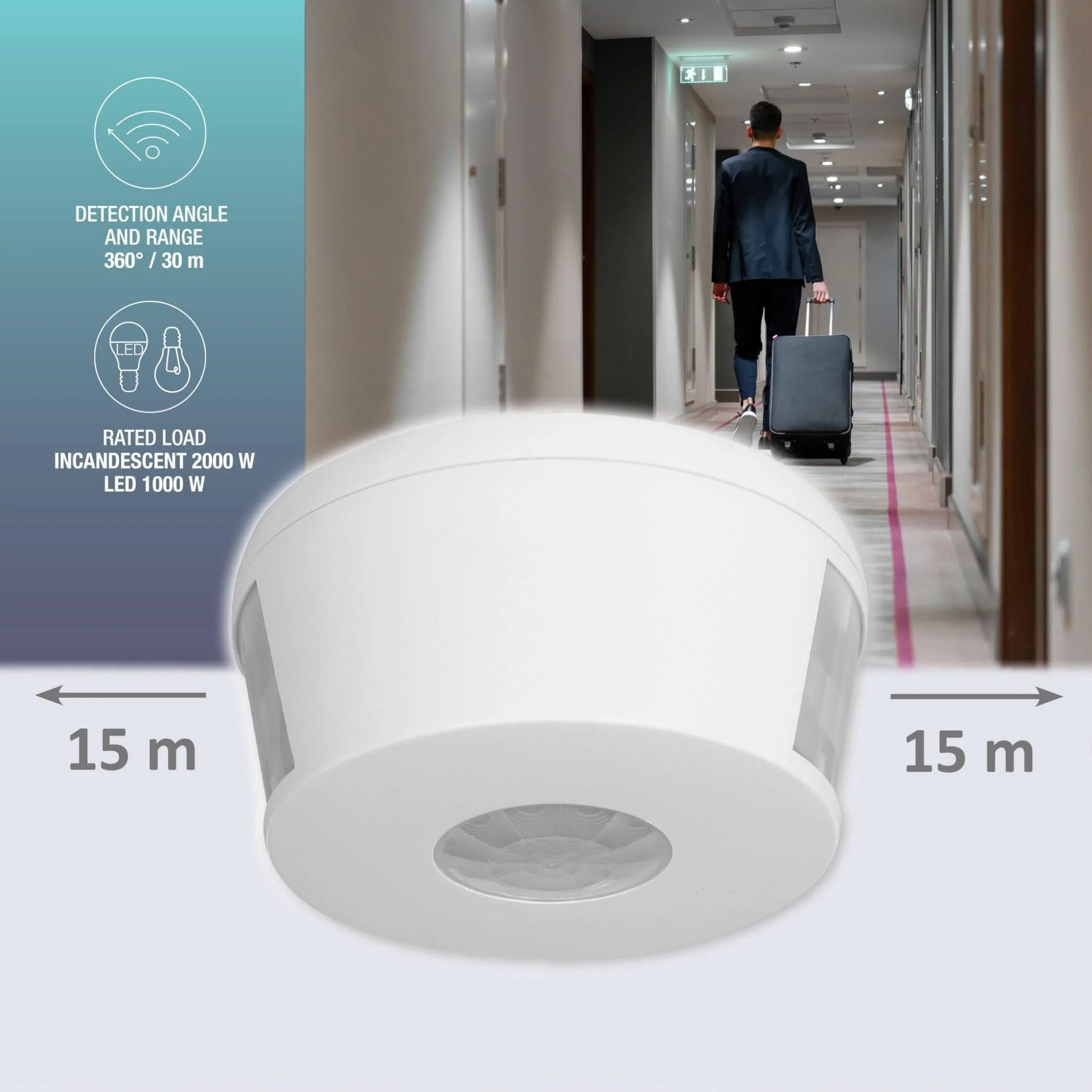

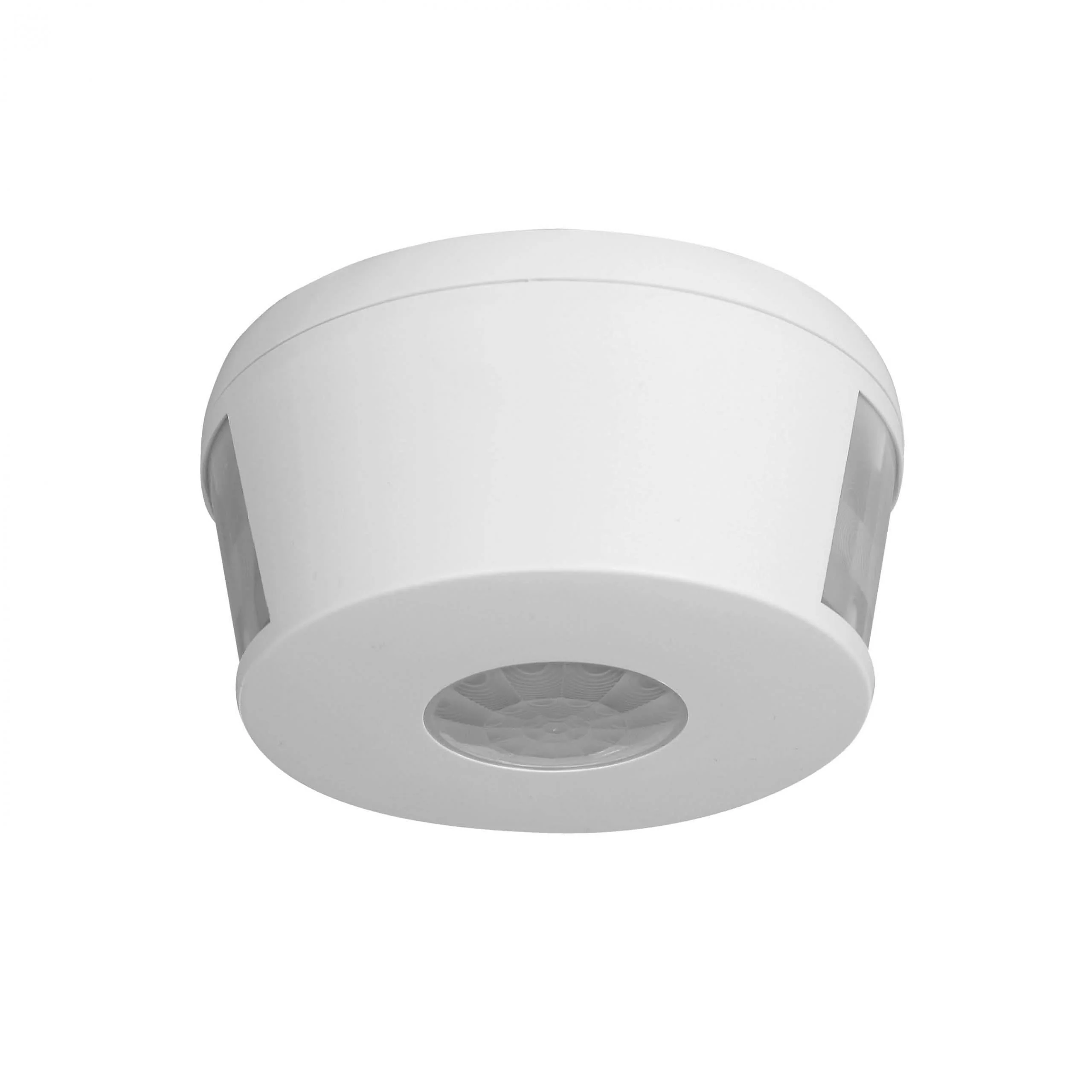

Corridor Sensor – E.1011.31

The E.1011.31 Corridor Sensor is a reliable motion detection solution designed for hallways, passages, and long spaces. With a directional detection range of up to 30m, it ensures efficient lighting control by switching lights on only when movement is detected. Its adjustable time delay from 3 seconds to 15 minutes provides flexibility to suit different environments, helping to save energy and improve convenience.

Practical Tip: Install in school corridors, office hallways, or parking passages to cut down on wasted electricity while ensuring safety and visibility when people pass through.

Key Features

• Directional detection range up to 30 metres
• Adjustable time delay: 3 seconds – 15 minutes
• Rated load: 2000W (Incandescent), 1000W (LED)
• Compact design for discreet installation
• Energy-saving automation for corridors and long spaces

Specifications

• Colour: White
• Material: Polycarbonate
• Dimensions: W103 × H53.5 × D103 mm
• IP Rating: IP20 (indoor use)
• Detection Distance: Max. 30m (directional)
• Time Delay: 3s – 15min (adjustable)
• Rated Load: Incandescent – 2000W / LED – 1000W

Ideal Applications

• Corridors in schools, offices, and hotels
• Long residential passages
• Parking lots and warehouse aisles

Why Choose the E.1011.31 Corridor Sensor?

• Long-range detection up to 30m
• Customisable time delay for energy efficiency
• Robust build with polycarbonate housing
